Owners of KitchenAid refrigerators, especially models in the KRFC704FPS series, often run into a frustrating issue: the ice maker stops working due to a frozen fill tube. One of the most common solutions is replacing the fill tube assembly – part W11230096 (which replaces part W10793652)- only work on KRFC704FPS00 thru KRFC704FPS03


🔧 What Is the W11230096 Fill Tube Assembly?

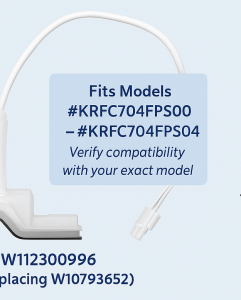

This part is the heated water-fill tube that supplies water to the ice maker. When working properly, the built-in heater prevents the tube from freezing, ensuring ice production continues smoothly.

It’s compatible with many KitchenAid and Whirlpool models, including:

  • KRFC704FPS00
  • KRFC704FPS01
  • KRFC704FPS02
  • KRFC704FPS03
  • Possibly KRFC704FPS04 Kitchen Aid KRFC704FPS

⚠️ Caution: Always verify compatibility with your specific model using the manufacturer’s parts diagram. Even one digit difference (e.g., 04 vs. 05) may mean a completely different configuration.


⚠️ Not an Easy Fix — Even When the Part Fits

While the fill tube assembly is technically replaceable on models 00 through 04, this is not an easy repair. The replacement process involves carefully accessing and disconnecting components embedded in the door liner, which may be sealed or difficult to reach.

In some cases, if the replacement cannot be completed successfully, you may still end up needing to purchase the entire door assembly. That’s why many techs recommend professional service for this repair.


🚫 Models That Require Full Door Replacement

For KRFC704FPS05 and KRFC704FPS06, the fill tube and heater are integrated into the door and not available as a separate part. In these cases, the only solution is to order and install the entire left door assembly:

  • Part Number: W11610996 (Replaces: W11518053)
  • Lead Time from the factory: 4–6 weeks (1–2 months)
  • Note: This part is non-returnable and made to order

✅ Temporary Solution: Manual Defrosting

Some homeowners choose to temporarily defrost the fill tube manually every 3–4 weeks using a hairdryer. While this may restore function for a while, it’s only a band-aid—if the heater is faulty, the freezing issue will return.


📋 Repair Planning Checklist

✅ Step Action
1 Identify your exact fridge model (00, 01, 04, 05, etc.)
2 Check factory diagrams to confirm part compatibility
3 If replaceable, order W11230096 for models 00, 01, 02 and 03
4 Be prepared for a complex installation
5 If your model is 05 or 06, plan to replace the entire door
6 Consider hiring a professional to avoid damage during repair

Why It Matters

  • Ice maker won’t work if the fill tube is frozen
  • Heater failure is common in these models
  • Some models allow tube-only repair, others require a full door
  • Even if the part is available, installation can be difficult and risky

📝 Final Takeaway

If your KitchenAid fridge is a KRFC704FPS00–04, you may be able to resolve your ice maker issue by replacing the fill tube assembly (W11230096). However, the repair is not easy, and there’s still a risk you’ll need to replace the entire door if the tube cannot be removed or installed correctly.

For newer models like KRFC704FPS05 and FPS06, your only option is a new door assembly, which comes with its own cost and wait time.
